The story leading up to this repair (click here).
Note: Most of this was originally written in July 2010.
John Hellwege, service manager at Gratitude Yachting Center, has decided to make their shop the leading East Coast authority on everything Island Packet. It appears that ours is only the second 420 to suffer the indignity of a holding tank failure. The location of this tank is in a bad spot, centered in the forward cabin, partly under the forward bunk and partly under the walkway to the head. John's decided to try to minimize the destruction necessary to remove it by going in through the storage area under the bunk and exposing as much of the tank as possible. For those not familiar with the IP420, the forward bunk is hinged so it can be lifted to reveal a large storage area underneath. Pullout panels in the floor provide access to even more storage beneath that. Underneath this second level is where the holding tank is hidden away.
This
part of the project, removing the tank, went pretty quickly. Referring
to drawings, they mapped out existing hoses and bulkheads that were
hidden from view. After removing the drawers and hardware they were
able to make precise cuts and remove only what was necessary from the
support structure beneath the bunk. The entire first level of storage
was removed in one piece which will make it less painful to put back
together again in the end. Once down to the second level they removed
one section of flooring and some bracing to expose the tank.
With
the tank exposed the plan was to cut it into sections for removal.
When the tank was first drilled into it was found to be pressurized.
This indicated that the vent line was plugged which explained why the
tank was unable to be pumped out. At first, everyone was thinking that
this was the real cause of our problem and that the tank wouldn't need
to be replaced. At this point no one had actually done a visual
verification that there really was a hole in the tank. To be able to
see underneath the tank you would have to be a double jointed
contortionist with a flashlight in your mouth and mirrors in each
hand. Being smarter than most, John used his cell phone camera and
after several tries discovered a hole along the seam the size of a half
dollar. I never doubted there was a hole down there because I had spent
several hours cleaning up the putrid mess that had leaked out of the
tank. John's photograph verified our suspicions. The picture here
shows the cut out section of the tank with the hole in the center.
We
were originally going to use an off-the-shelf tank made by Moeller
Plastics. This was a standard rectangular model, 28" x 23" x 11.5", and
the largest we could fit would have been 30 gallons. We decided to
bite the bullet and go with a custom made tank that'll fit the space
better and give us more volume. The actual cost is about the same since
the Moeller tank would have required additional bracing and man-hours
for installation. The tank we finally settled on will be built to our
specs by Wellington Plastics in British Columbia, made from 1/2" welded
polyethylene. The biggest drawback with the custom tank is having to
wait for it to be built. This, along with 5 days for shipping, has
added 3 weeks to this project, basically doubling the amount of time for
the repair. Yikes you say, six weeks! That's what we said too. But
after giving it some thought we felt it was better to have the larger
tank for resale value and were willing to put in the extra time to have
this done right. With a boat of this quality you just can't do things
half-way.
Here's some pics showing what's going on. The first one is of our bunk in the forward cabin with the mattress and top level removed. You can see part of the holding tank showing through the floor. The machinery in the background is the air conditioner for the forward stateroom. It uses the storage area under the bunk as an air return chamber. Pretty cool, so to speak. When it's running you can't even hear it. The next picture shows the top section of the bunk that was removed in one large piece so reassembly will go quicker. The third picture shows the tank before they cut into it. That's only about half the tank showing as the rest of it extends to the left under the cabin sole. To remove the tank in one piece would have required cutting out the side of the bunk and a section of the floor. If you look at the exposed compartment below the tank you can see some of the hoses and valves for the tank. You can also see some of the crud that had leaked out. Mmmmm, nice huh? This area was all covered up when we first found we had a problem. To the left of the hoses in this picture is another compartment under the cabin sole and this is where I found the original mess. It's also where we found the "leaking valve" while the boat was in Florida prior to the survey. It should have been obvious to anyone familiar with the layout of the boat what the real problem was. I claim innocence (read stupidity) since I didn't have a clue about where the holding tank was. The surveyor on the other hand was intimately aware of it, having recently inspected another 420. But I digress. Sorry about that.
You
can see in the bottom picture that the new tank wouldn't be able to fit
through the existing hole if it was the same size as the original.
This creates a problem or two. We want to minimize the amount of damage
to the surrounding cabin. We also want to have a tank that's pretty
much the same volume, 60 gallons. Last but not least, we want to
squeeze it through a hole that was too small for the original 60 gallon

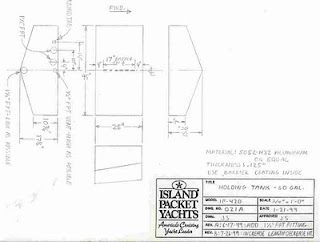

tank to come out of. Same old story, Tom wants it all. John took the
dimensions of the original tank and shrunk it down just enough to fit.
He estimates the new tank volume to be 55 gallons.
At this point a few weeks have gone by. The tank is installed. I saw it with my own two eyes last weekend. It's in place with the lines reconnected and nicely braced and battened down. This week (the final week?) my old buddy Mac will be doing the final fiberglass work. Mac is a genius with fiberglass, even built his own boat from scratch. I have no doubt the work will be top notch.
A nice upgrade we're doing on this project is a sensor and readout so we can tell how full the tank is. I don't ever want to have to clean up from an overflowed pump-out line again. Yuck! I mean it's just disgusting! Definitely worth a few bucks to be able to avoid that. The unit we're putting in is made by Electrosense (click here for their website). A common way for reading out tank volume is with a float, just like in your toilet tank or your gas tank. Not such a good choice in this environment because it can easily get stuck. Then ya hafta go in and clean it. No thanks. Another way is with pneumatic tubes or hoses but these can clog. Then what? Blow through the hose to clear it? I don't think so. Probably the most common readout for a holding tank is an electronic sensor that mounts on the outside wall of the tank. This seems like the way to go because there's no moving parts and it doesn't actually come in contact with the contents of the tank. The problem with this system is that it can be fooled by buildup on the inside of the tank. Maybe an even bigger problem is that there have been reports of a high rate of electrical failure. The unit made by Electrosense mounts at the top of the tank and has five sensor rods inside, each being a different length and custom tuned to our tanks volume. The rods are mounted in a 1.5" PVC plug which threads into the top of the tank and contains the electronics for the sending unit. Low voltage signals are sent over a Cat5e cable to the display, which in our case will be mounted at the Nav Station. The only time this thing uses any power is when you push a button on the display which lights up the LED's of the rods that are immersed. Pretty simple and a nice power saver too. We have found that this company, Electrosense, says what they do and then does what they say. They back their gear 100% and when we had problems with intermittent readings the owner came to our boat and spent an entire day working on it, at no charge to us. These guys are highly recommended.
I just received a few more pictures from John showing the most recent progress. I'll include them here for your perusal. The one with the blue squiggly line shows the black poly tank in place with bracing. The blue line is the Cat5e cable for the sensor readout. This picture was taken at an angle so the black tank is actually laying horizontally under the floor.
The next picture shows the new wood panels installed with an access panel for hiding stuff way down there. After that we see the next level being glassed in. This provides another level of storage below the bunk and has multiple access panels. There's a ton of storage space under this bunk!
Update - It's now been several years since we went through this. The entire process was a nightmare for us. The time allotted was way off. We were originally told three weeks, then six because of the custom tank and time for shipment. In the end it took eight weeks. Not only that but the original price was estimated at $7,500 to $9,000. The final bill came to over $12,000. I'm not sure anyone could have done it for less money or in less time. This industry has a reputation for missing the bid by a mile.
We are happy with the final job. We have a holding tank that shouldn't give us any problems for years to come. We still believe going with the better tank was worth the headaches and expense. The larger tank is worth it. And in the end we'll have something better to offer potential buyers. If that time ever comes.
